How to Set SWR on CB Radio: A Step-by-Step Guide

Setting the SWR on a CB radio is crucial for optimal performance. It ensures your signal is clear and strong.

CB radios are popular for communication. Properly tuning your SWR, or Standing Wave Ratio, is key. It helps prevent damage and improves signal quality. Many users struggle with this task, but it’s easier than you think. With the right steps, you can set your SWR correctly.

This guide will walk you through the process. You’ll learn how to measure and adjust the SWR, ensuring your CB radio works efficiently. Whether you’re a beginner or experienced user, this information will help you achieve the best results. So, let’s get started on setting your SWR!

Tools Required

When setting SWR (Standing Wave Ratio) on your CB radio, having the right tools is essential. This section breaks down the tools required into essential equipment and optional accessories. Understanding what you need helps you get the job done efficiently and effectively.

Essential Equipment

First and foremost, you need an SWR meter. This device is crucial for measuring the SWR value accurately. Without it, setting SWR is nearly impossible.

Next, you’ll need a short coaxial cable, often called a patch cable. This connects the SWR meter to your CB radio.

Ensure you have your CB radio and antenna ready. The antenna is vital for transmitting and receiving signals, while the radio is your main communication tool.

Optional Accessories

Though not mandatory, a dummy load can be helpful. It allows you to test your setup without broadcasting on the airwaves, which can be useful in certain situations.

Antenna tuners are another optional accessory. They help fine-tune your antenna to achieve the best possible SWR reading.

Lastly, having a notebook to jot down your readings and adjustments can be very practical. It helps you keep track of what changes were made and their impact.

Setting SWR on a CB radio can seem daunting, but with the right tools, it becomes much simpler. Have you ever struggled with setting SWR? What tools did you find most helpful?

Credit: www.lastgreatroadtrip.com

Preparing Your Cb Radio

Getting your CB radio ready is the first step towards clear and effective communication. You need to make sure everything is set up correctly to get the best performance. Let’s break it down step by step.

Setting Up The Radio

First, find a stable and secure location for your CB radio. It should be within easy reach but not obstructive. You don’t want to fumble around while driving.

Once you have chosen the spot, mount the radio securely. Use the provided mounting bracket and screws. Ensure it’s tight enough to stay in place but not overly tightened that it damages the unit.

Next, connect the power supply. Most CB radios can be directly connected to your vehicle’s battery. Use the red wire for the positive terminal and the black for the negative. Make sure all connections are tight to avoid electrical issues.

Connecting The Antenna

Now, let’s talk about the antenna. It is crucial for transmitting and receiving signals. Without a proper antenna, your CB radio won’t work effectively.

First, choose the right type of antenna. A longer antenna usually provides better range. Mount the antenna on a metal surface, such as the roof or trunk of your vehicle. This ensures a good ground plane, which is essential for proper operation.

Once mounted, connect the coaxial cable from the antenna to the radio. Make sure the connection is secure and tight. A loose connection can result in poor performance.

Finally, adjust the antenna to the correct height and angle. This may require some trial and error. Use an SWR meter to fine-tune the antenna for optimal performance. This ensures that you are transmitting at the best possible efficiency.

Have you ever struggled with setting up your CB radio? What tips helped you the most? Share your experiences and let’s learn together!

Using An Swr Meter

Using an SWR meter is crucial for tuning your CB radio. It helps ensure optimal performance and protects your equipment. This guide will help you understand how to set SWR on a CB radio with an SWR meter.

Choosing The Right Meter

Selecting the right SWR meter is the first step. Look for one that matches your radio’s frequency range. Check the meter’s accuracy rating. A higher rating ensures precise readings. Ensure the meter is easy to use. It should have clear markings and a simple interface.

Connecting The Meter

Before connecting, turn off your CB radio. Connect the antenna cable to the SWR meter’s “Antenna” port. Then, connect a short coaxial cable from the meter’s “Transmitter” port to the radio. Make sure all connections are tight. Loose connections can cause inaccurate readings.

Once connected, turn on your CB radio. Set it to channel 1. Next, switch the meter to the “FWD” (forward) position. Key the microphone and note the reading. Then, switch to the “REF” (reflected) position. Key the microphone again and note this reading too.

Compare the readings. The goal is to have them as close to each other as possible. Adjust your antenna length if needed. Recheck the readings until they are satisfactory.

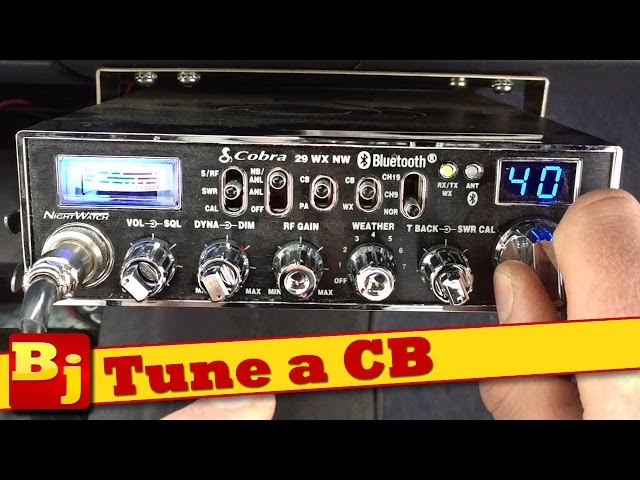

Credit: www.youtube.com

Measuring Swr

Measuring the SWR (Standing Wave Ratio) on your CB radio is crucial. It ensures your radio operates effectively. An improper SWR can damage your equipment. Follow these steps to measure SWR accurately.

Initial Reading

Start by turning on your CB radio. Set it to channel 1. Connect an SWR meter between the antenna and the radio. Ensure all connections are tight. Turn the radio to transmit mode. Read the SWR meter. Record this initial reading.

Change the channel to 40. Repeat the process. Compare both readings. This helps identify if your antenna is tuned properly. An ideal SWR reading should be below 1.5. Higher readings indicate issues.

Adjusting The Antenna

If the SWR readings are high, you need to adjust the antenna. Start by lengthening or shortening the antenna. Make small adjustments. After each adjustment, take new SWR readings. Record the results.

Continue adjusting until the SWR readings improve. Your goal is to get the readings as close to 1.0 as possible. Ensure the antenna is secured after adjustments. This prevents it from moving.

Once the SWR is set correctly, your CB radio will perform better. Proper SWR readings ensure clear and strong signals. Regularly check SWR to maintain optimal performance.

Fine-tuning Swr

Setting the Standing Wave Ratio (SWR) on your CB radio is crucial for optimal performance. Once you’ve done the initial setup, fine-tuning the SWR can make a significant difference. Let’s dive into the specifics of making adjustments and rechecking SWR to ensure your CB radio operates flawlessly.

Making Adjustments

Begin by ensuring your CB radio is connected to a properly grounded antenna. This step is vital for accurate SWR readings.

Next, adjust the length of your antenna. If your SWR reading is too high on channel 1, your antenna is too long. If it’s high on channel 40, your antenna is too short.

Use an SWR meter to monitor your progress. The meter will show you the SWR levels as you make adjustments. Aim for an SWR reading as close to 1:1 as possible.

Remember, small adjustments can have a big impact. Turn the antenna in tiny increments to find the sweet spot. Patience is key here.

When I was fine-tuning my first CB radio, I spent hours making minute adjustments. The effort paid off with crystal clear communication.

Rechecking Swr

After making adjustments, it’s crucial to recheck the SWR. This ensures that your changes have had the desired effect.

Use the SWR meter to take new readings on multiple channels. Consistent readings indicate a well-tuned system.

If the readings are still off, revisit your adjustments. Fine-tuning can be a trial-and-error process. Don’t get discouraged.

Have you ever wondered why your CB radio isn’t performing well despite having a high-quality unit? The answer often lies in improper SWR settings. Regular rechecking ensures long-term performance.

In my experience, rechecking the SWR after every adjustment session helped maintain optimal performance. It’s a habit worth developing.

By following these steps, you’ll ensure that your CB radio operates at its best. Happy fine-tuning!

Common Issues

Setting the SWR on a CB radio can be tricky. Common issues include incorrect antenna length and poor grounding. Ensuring proper connections and adjustments is key to optimal performance.

Setting the SWR (Standing Wave Ratio) on a CB radio can be a challenge for beginners and even seasoned users. Common issues can arise that may leave you puzzled. Understanding these problems is crucial to ensuring your CB radio operates efficiently and reliably.

Troubleshooting Tips

One frequent issue is a high SWR reading. This could mean your antenna is not properly tuned. Start by checking the antenna’s connection. Ensure it’s tight and secure. Another problem is interference. Objects around your antenna can affect the SWR. Try relocating your antenna to a higher point or a more open area. Sometimes, the coaxial cable is the culprit. Inspect it for any signs of wear or damage. Replace the cable if necessary to see if it improves the SWR reading.

Avoiding Pitfalls

Avoid using low-quality coaxial cables. They may be cheaper, but they can compromise your signal. Invest in a good-quality cable for better performance. Don’t neglect grounding your antenna. A poorly grounded antenna can lead to high SWR readings. Make sure your antenna is properly grounded to avoid this issue. Avoid using an antenna that is too short. Short antennas often struggle to achieve a good SWR. Opt for a longer antenna to improve your chances of a better reading. Remember, patience is key. Adjusting your antenna and checking your setup may take time. But with careful attention, you can resolve most issues. Have you ever faced any of these issues? What did you do to fix them? Share your experiences and let’s learn together.

Maintaining Optimal Swr

Achieving an ideal Standing Wave Ratio (SWR) ensures clear communication on a CB radio. Adjust the antenna length and position for the best results. Proper calibration minimizes signal loss and maximizes performance.

Maintaining Optimal SWR Keeping your CB radio’s SWR (Standing Wave Ratio) optimal is crucial for effective communication. An optimal SWR ensures your radio’s performance remains top-notch. This not only prevents damage but also extends your radio’s lifespan.

Regular Checks

Regularly checking your SWR is essential. It helps you catch issues early before they become serious problems. Make it a habit to check your SWR every few months. If you use your CB radio frequently, check it more often. Invest in a quality SWR meter for accurate readings. A good SWR meter makes the process quick and straightforward.

Long-term Care

Long-term care is about maintaining your CB radio and its components over time. Start by cleaning your antenna and connections regularly. Ensure your antenna is properly mounted and secured. A loose antenna can affect your SWR readings. Store your CB radio in a dry, dust-free environment. Moisture and dust can damage electronic components. Remember, consistent maintenance keeps your CB radio performing well. What steps will you take today to maintain your CB radio?

Credit: strykerradios.com

Frequently Asked Questions

How To Calibrate Swr On Cb Radio?

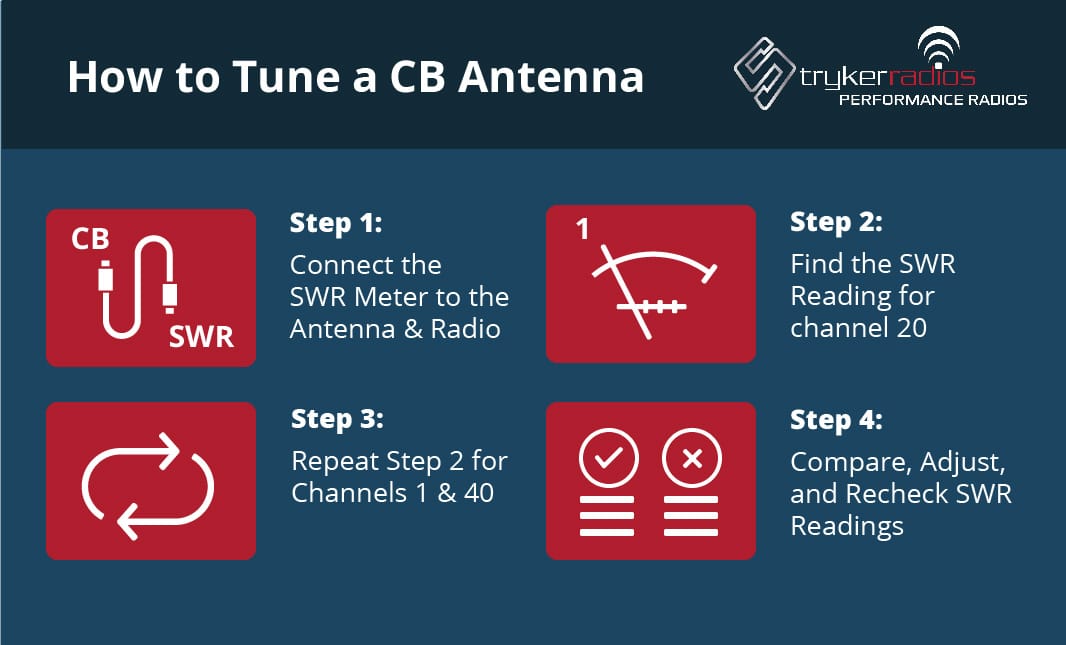

To calibrate SWR on a CB radio, connect an SWR meter. Set the radio to channel 20. Key the microphone and adjust the antenna for the lowest SWR reading. Repeat on channels 1 and 40 for optimal tuning.

What Is A Good Swr For A Cb Radio?

A good SWR for a CB radio is between 1. 0:1 and 1. 5:1. Lower SWR ensures better performance and signal strength.

How Do I Get My Swr Down On My Cb Radio?

To lower SWR on your CB radio, adjust the antenna length. Ensure proper grounding and check for cable damage. Use an SWR meter to fine-tune.

How To Set Rf Gain On Cb?

Turn the RF gain knob clockwise to increase sensitivity. This helps receive weaker signals. Turn it counterclockwise to reduce sensitivity, minimizing background noise. Adjust according to signal strength for clearer communication.

Conclusion

Setting SWR on a CB radio ensures better communication. Keep your equipment in good condition for best results. Regular checks prevent issues and improve performance. Always adjust your antenna correctly. This keeps your signal strong and clear. Follow each step carefully to maintain your radio’s efficiency.

Practice makes perfect. With time, tuning SWR becomes easier. Enjoy clearer communication and fewer disruptions. Always prioritize safety while working with CB radios. Your efforts lead to smoother connections. Happy communicating!
